ED060SC4 Driver Board

This projects intends to be a SPI driver board for the E-Ink display screen ED060SC4.

This project is still under development, you can have a look at the schematics, the PCB or the components, but it’s not finished and will likely change!

Schematics

The board is centered around 3 building blocks:

• ED060SC4, EPD screen
• STM32F103C8T6, microcontroller used to drive the screen
• TPS65185, used to generate the different rails required

The schematics can be found in pdf.

Interactive Board

The PCB, nets and BOM can be seen in an interactive html format.

Gerbers

The gerber files are available in a zip archive ready to be sent for manufacturing.

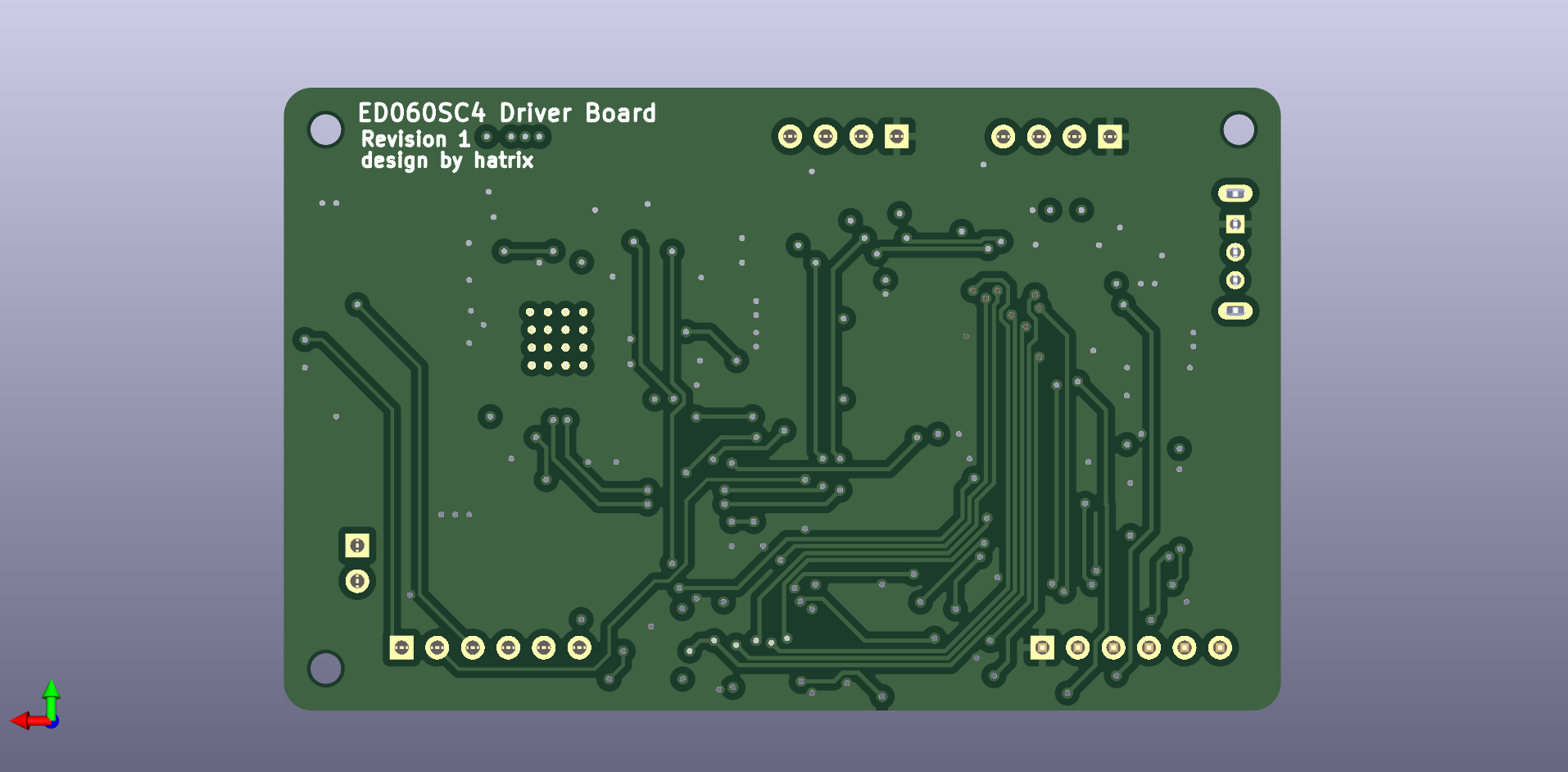

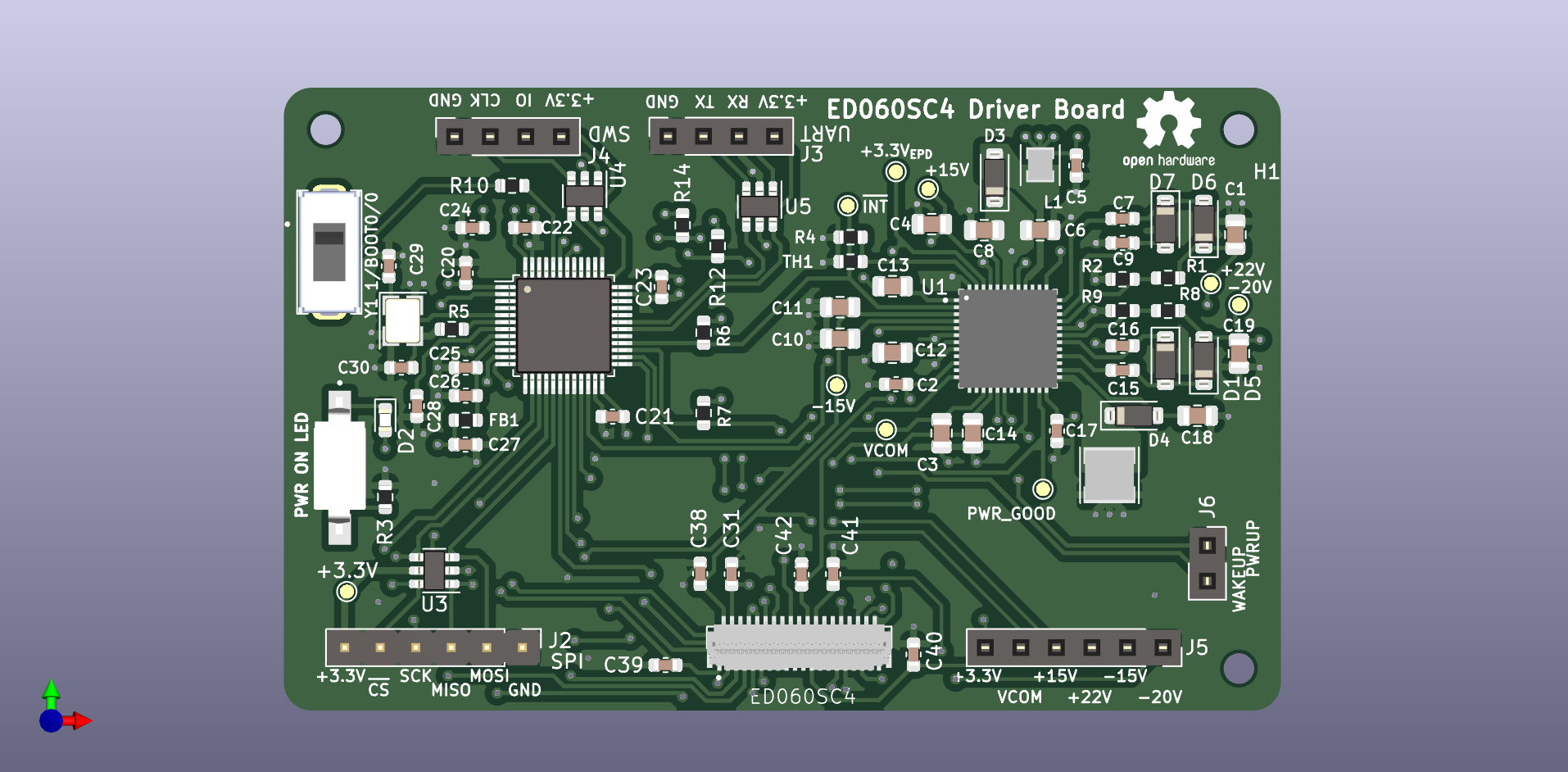

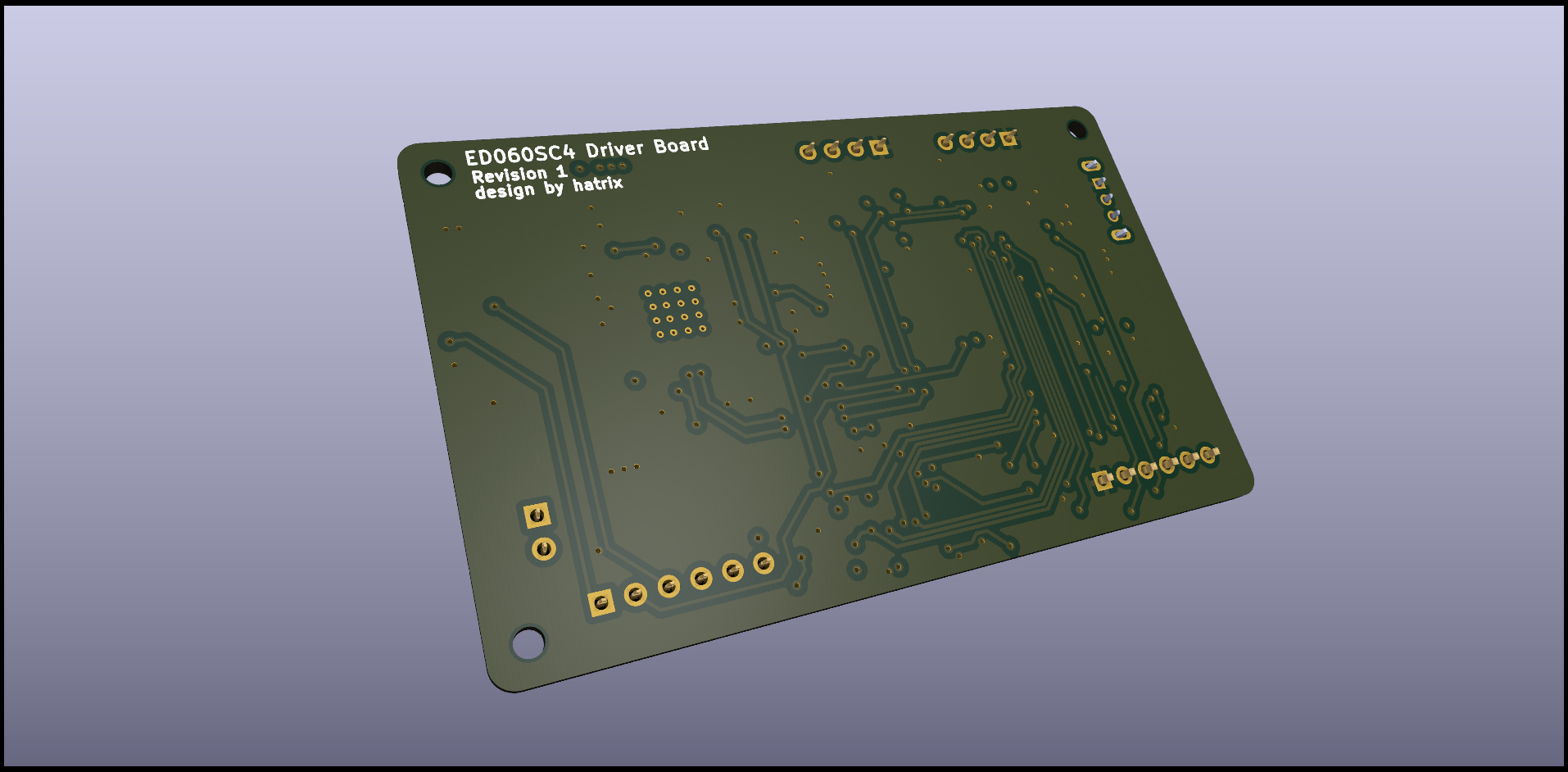

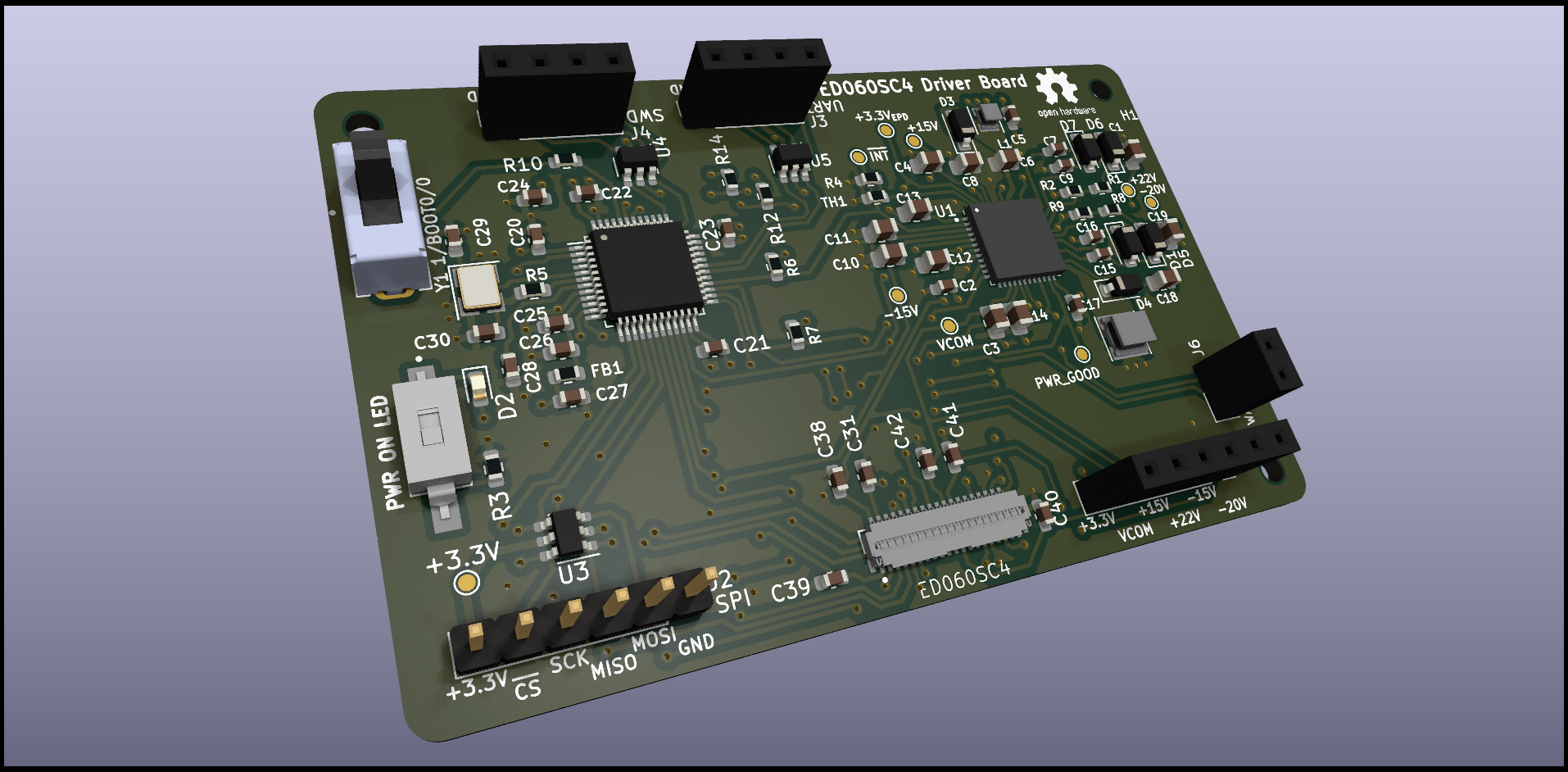

Images
